trajectoryVisualizationApp Class Reference

app that can be used to visualize a Trajectory object More...

+ Inheritance diagram for trajectoryVisualizationApp:

Public Member Functions

function trajectoryVisualizationApp (in varargin)

function delete (in app)


Public Attributes

Property TrajectoryVisualizationUIFigure

Property gridMain

Property gridSettingsZoom

Property gridSettings

Property gridSettingsCtrl

Property ZoomSlider

Property ZoomSliderLabel

Property PlaySpeedSlider

Property PlaySpeedSliderLabel

Property SettingsLabel

Property axTrajZoom

Property gridControl

Property gridControlBtns

Property fldCurrTime

Property btnGoToOut

Property gridPlay

Property btnPlayPause

Property btnNextFrame

Property btnPrevFrame

Property btnGoToIn

Property gridTimeSliders

Property sliderTime

Property sliderRange

Property gridFooter

Property lblMoss

Property imgLogo

Property axTrajMain


Private Member Functions

function startupFcn (in app, in traj)

function sliderTimeChange (in app, in event)

function playPause (in app, in event, in options)

function zoomSliderChange (in app)

function nextFrame (in app)

function prevFrame (in app)

function goToIn (in app)

function goToOut (in app)

function fldCurrTimeChanged (in app, in varargin)

function sliderRangeChanging (in app, in event)

function updatePlots (in app, in idx, in options)

function playTimerCallback (in app, in ignoredArg, in ignoredArg)

function createComponents (in app)


Private Attributes

Property traj

Property fs

Property mainPosePatch

Property zoomPosePatch

Property playing

Property playTimer

Property pointIn

Property pointOut

Property colors

Property colorIdx


Detailed Description

app that can be used to visualize a Trajectory object

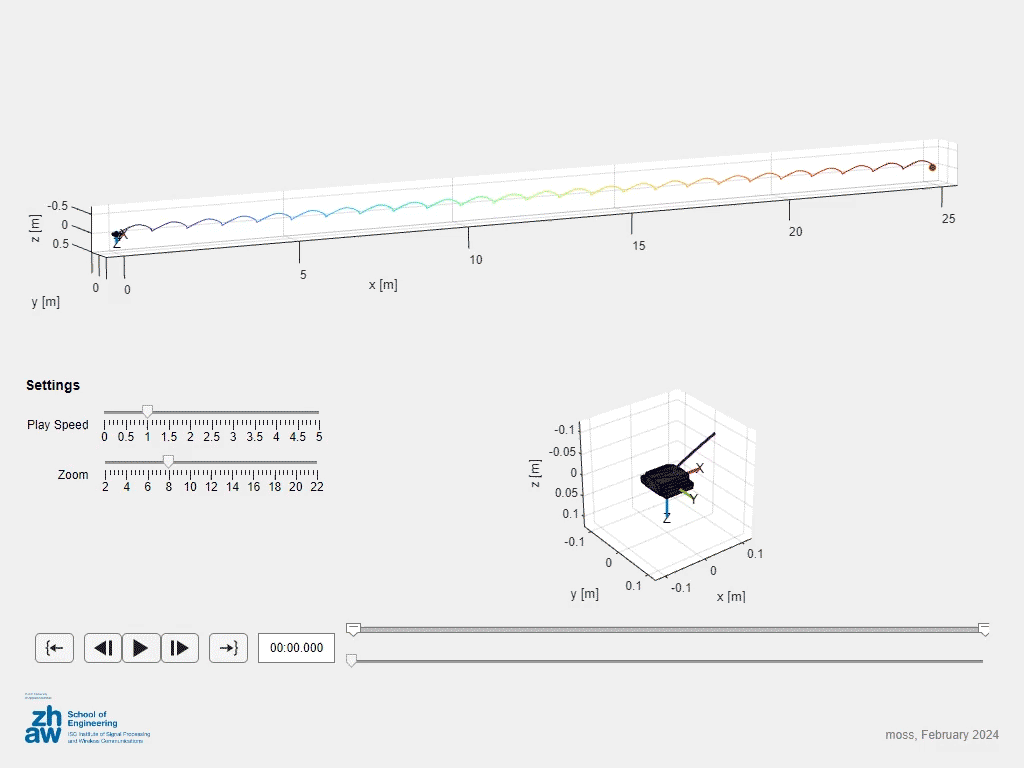

This app is designed to visualize a Trajectory object either from the workspace or from the trajectoryGenerationApp. It provides a 3D plot of the trajectory, a zoomed in plot of the current position and orientation, and controls to play, pause, and skip through the trajectory.

The app is designed to be used with the Trajectory object which must have a minimum of one Waypoint entry. The Trajectory object can be generated from the trajectoryGenerationApp or manually, like in the trajectoryExample.m

app = trajectoryVisualizationApp(traj);
trajectoryVisualizationApp::trajectoryVisualizationApp
function trajectoryVisualizationApp(in varargin)
Copyright
see the file LICENSE in the root directory of the repository
Example Usage
Examples
derivation1KalmanFilter.m, trajectoryExample.m, and waypointsToMeasurementsExample.m.

Definition at line 23 of file trajectoryVisualizationApp.m.
